石英晶體振蕩器
- 編號：48746998
- 頻率：25MHZ
- 尺寸：3.2*2.5mm
25MHZ,CX3225GA25000D0PTVCC,CX3225GA,SMD
25MHZ,CX3225GA25000D0PTVCC,CX3225GA,SMD,尺寸3225mm,頻率25MHZ,工作溫度-40C~+150C，京瓷晶振，日本進口晶振，貼片無源晶振，3225mm貼片晶振，水晶振動子，陶瓷晶振，SMD晶振，環保晶振，車載專用晶振，發動機控制晶...
25MHZ,CX3225GA25000D0PTVCC,CX3225GA,SMD,尺寸3225mm,頻率25MHZ,工作溫度-40°C~+150°C，京瓷晶振，日本進口晶振，貼片無源晶振，3225mm貼片晶振，水晶振動子，陶瓷晶振，SMD晶振，環保晶振，車載專用晶振，發動機控制晶振，輪胎氣壓監視系統專用晶振，高速車載網絡晶振，CX3225GA30000D0PTVCC晶振，CX3225GA27000D0PTVCC晶振，產品主要適用于汽車應用程序，發動機控制，輪胎氣壓監視系統（TPMS），高速車載網絡等領域。

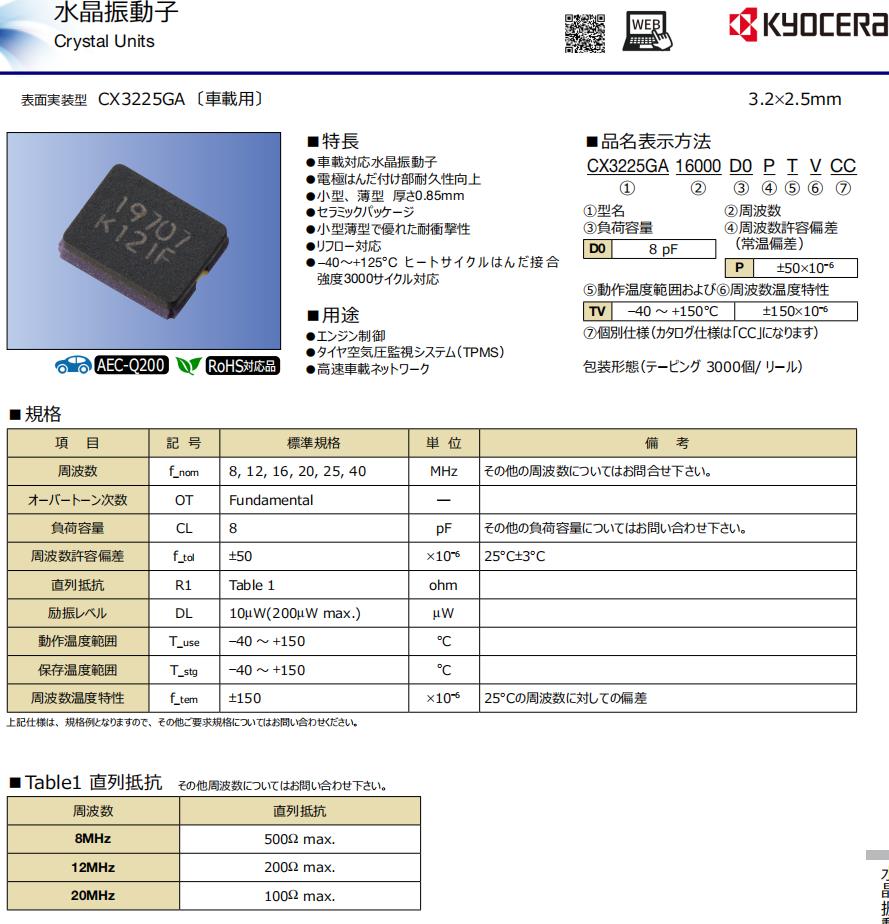

25MHZ,CX3225GA25000D0PTVCC,CX3225GA,SMD 參數表
| 項 目 | 記 號 | 標準規格 | 単 位 | 備注 | |||||||||||||||
| 周波數f | _nom | 8, 12, 16, 20, 25, 40 | MHz | 關于其他的頻率請咨詢。 | |||||||||||||||
| オーバートーン次數OT | Fundam | ental― | |||||||||||||||||
| 負荷容量CL | 8 | pF | 關于其他負荷容量請與我們聯系 | ||||||||||||||||
| 周波數許容偏差f | _tol | ±50 | ×10−6 | 25°C±3°C | |||||||||||||||
| 直列抵抗R1 | Table 1 | ohm | |||||||||||||||||
| 勵振レベルDL | 10 | μW(200μW max.) | μW | ||||||||||||||||
| 動作溫度範囲T | _use | −40～ +150 | °C | ||||||||||||||||
| 保存溫度範囲T | _stg | −40～ +150 | °C | ||||||||||||||||
| 周波數溫度特性f | _tem | ±150 | ×10−6 | 與25°C頻率的偏差 | |||||||||||||||
更多京瓷晶振編碼
| 原廠編碼 | 廠家 | 型號 | 系列 | 頻率 | 工作溫度 |
| CX3225GA24000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 24MHz | -40°C ~ 150°C |
| CX3225GA24000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 24MHz | -40°C ~ 150°C |
| CX3225GA24000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 24MHz | -40°C ~ 150°C |
| CX3225GA25000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 25MHz | -40°C ~ 150°C |
| CX3225GA25000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 25MHz | -40°C ~ 150°C |
| CX3225GA25000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 25MHz | -40°C ~ 150°C |
| CX3225GA20000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 20MHz | -40°C ~ 150°C |
| CX3225GA20000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 20MHz | -40°C ~ 150°C |
| CX3225GA20000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 20MHz | -40°C ~ 150°C |
| CX3225GA26000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 26MHz | -40°C ~ 150°C |
| CX3225GA26000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 26MHz | -40°C ~ 150°C |
| CX3225GA26000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 26MHz | -40°C ~ 150°C |
| CX3225GA30000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 30MHz | -40°C ~ 150°C |
| CX3225GA30000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 30MHz | -40°C ~ 150°C |
| CX3225GA30000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 30MHz | -40°C ~ 150°C |
| CX3225GA27000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 27MHz | -40°C ~ 150°C |
| CX3225GA27000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 27MHz | -40°C ~ 150°C |
| CX3225GA27000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 27MHz | -40°C ~ 150°C |
| CX3225GA13560D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 13.56MHz | -40°C ~ 150°C |
| CX3225GA13560D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 13.56MHz | -40°C ~ 150°C |
| CX3225GA13560D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 13.56MHz | -40°C ~ 150°C |
| CX3225GA32000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 32MHz | -40°C ~ 150°C |
| CX3225GA32000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 32MHz | -40°C ~ 150°C |
| CX3225GA32000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 32MHz | -40°C ~ 150°C |
| CX3225GA09843D0PTVTT | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 9.843MHz | -40°C ~ 150°C |
| CX3225GA09843D0PTVTT | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 9.843MHz | -40°C ~ 150°C |
| CX3225GA09843D0PTVTT | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 9.843MHz | -40°C ~ 150°C |
| CX3225GA12000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 12MHz | -40°C ~ 150°C |
| CX3225GA12000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 12MHz | -40°C ~ 150°C |
| CX3225GA12000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 12MHz | -40°C ~ 150°C |
| CX3225GA10000D0PTVTT | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 10MHz | -40°C ~ 150°C |
| CX3225GA10000D0PTVTT | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 10MHz | -40°C ~ 150°C |
| CX3225GA10000D0PTVTT | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 10MHz | -40°C ~ 150°C |
| CX3225GA16000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 16MHz | -40°C ~ 150°C |
| CX3225GA16000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 16MHz | -40°C ~ 150°C |
| CX3225GA16000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 16MHz | -40°C ~ 150°C |
| CX3225GA28636D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 28.63636MHz | -40°C ~ 150°C |
| CX3225GA40000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 40MHz | -40°C ~ 150°C |
| CX3225GA40000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 40MHz | -40°C ~ 150°C |
| CX3225GA40000D0PTVCC | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 40MHz | -40°C ~ 150°C |
| CX3225GA25000D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 25MHz | -40°C ~ 150°C |
| CX3225GA25000D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 25MHz | -40°C ~ 150°C |
| CX3225GA25000D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 25MHz | -40°C ~ 150°C |
| CX3225GA26000D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 26MHz | -40°C ~ 150°C |
| CX3225GA26000D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 26MHz | -40°C ~ 150°C |
| CX3225GA26000D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 26MHz | -40°C ~ 150°C |
| CX3225GA27000D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 27MHz | -40°C ~ 150°C |
| CX3225GA27000D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 27MHz | -40°C ~ 150°C |
| CX3225GA27000D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 27MHz | -40°C ~ 150°C |
| CX3225GA09843D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 9.84375MHz | -40°C ~ 150°C |
| CX3225GA09843D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 9.84375MHz | -40°C ~ 150°C |
| CX3225GA09843D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 9.84375MHz | -40°C ~ 150°C |
| CX3225GA28636D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 28.63636MHz | -40°C ~ 150°C |
| CX3225GA28636D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 28.63636MHz | -40°C ~ 150°C |
| CX3225GA28636D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 28.63636MHz | -40°C ~ 150°C |
| CX3225GA30000D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 30MHz | -40°C ~ 150°C |
| CX3225GA30000D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 30MHz | -40°C ~ 150°C |
| CX3225GA30000D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 30MHz | -40°C ~ 150°C |
| CX3225GA10000D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 10MHz | -40°C ~ 150°C |
| CX3225GA10000D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 10MHz | -40°C ~ 150°C |
| CX3225GA10000D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 10MHz | -40°C ~ 150°C |
| CX3225GA32000D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 32MHz | -40°C ~ 150°C |
| CX3225GA32000D0PTVZ1 | Kyocera晶振 | CX3225GA, Kyocera | MHz Crystal | 32MHz | -40°C ~ 150°C |
