石英晶體振蕩器
- 編號：11889774
- 頻率：24.0MHz
- 尺寸：5.0*3.2mm

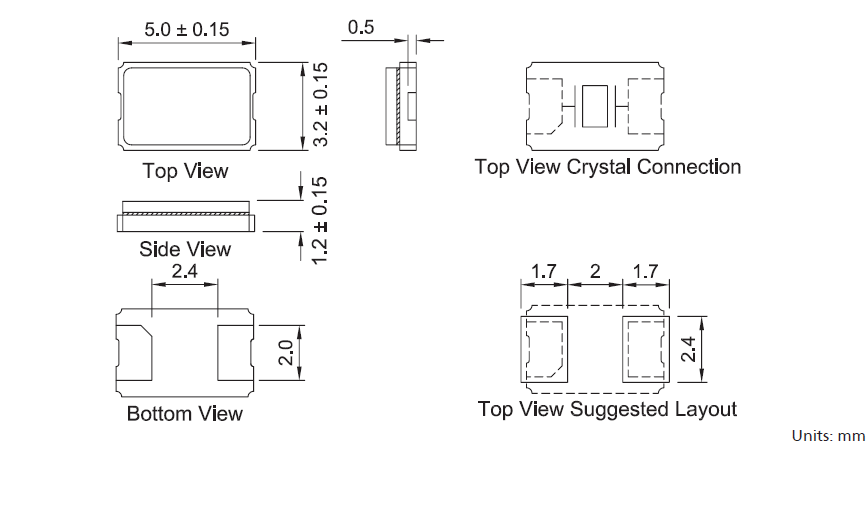

7A-24.000MAAJ-T,5032mm,TXC晶振
尺寸為5023mm的臺灣TXC晶振公司生產的型號為7A的陶瓷晶振,物料編碼：7A-24.000MAAJ-T.無源晶振,陶瓷諧振器,臺灣TXC晶振公司成立幾十年來已經擁有十分成熟的晶振技術,廣泛運用于到電腦晶振,電視晶振,洗衣機晶振等行業
.jpg)
7A-24.000MAAJ-T,5032mm,TXC晶振.尺寸為5023mm的臺灣TXC晶振公司生產的型號為7A的陶瓷晶振,物料編碼：7A-24.000MAAJ-T.頻率為24MHz,負載電容為18pf，平率偏差為30±，較好的耐環境性可以在-20℃至70℃的環境工作，無源晶振,陶瓷諧振器,臺灣TXC晶振公司成立幾十年來已經擁有十分成熟的晶振技術,廣泛運用于到電腦晶振,電視晶振,洗衣機晶振等行業
7A-24.000MAAJ-T,5032mm,TXC晶振
| 原廠編碼 | 7A-24.000MAAJ-T |
| 頻率 | 24.0MHz |
| 廠家 | TXC晶振 |
| 型號 | 7A |
| 頻率偏差 | ±30ppm |
| 負載電容 | 18pF |
| 工作溫度 | -20°C ~ 70°C |
| 電阻 | 50 Ohm |
7A-24.000MAAJ-T,5032mm,TXC晶振
格截圖.jpg)
| 7A-27.120MAAE-T | TXC晶振 | 7A | 27.12MHz | ±30ppm | ±30ppm | 12pF |
| 7A-24.000MAAJ-T | TXC晶振 | 7A | 24MHz | ±30ppm | ±30ppm | 18pF |
| 7A-16.000MAAJ-T | TXC晶振 | 7A | 16MHz | ±30ppm | ±30ppm | 18pF |
| 7A-8.000MAAJ-T | TXC晶振 | 7A | 8MHz | ±30ppm | ±30ppm | 18pF |
| 7A-12.000MAAJ-T | TXC晶振 | 7A | 12MHz | ±30ppm | ±30ppm | 18pF |
| 7A-25.000MAAJ-T | TXC晶振 | 7A | 25MHz | ±30ppm | ±30ppm | 18pF |
| 7A-27.120MAAJ-T | TXC晶振 | 7A | 27.12MHz | ±30ppm | ±30ppm | 18pF |
| 7A-24.000MAHE-T | TXC晶振 | 7A | 24MHz | ±30ppm | ±30ppm | 12pF |
| 7A-10.000MAAJ-T | TXC晶振 | 7A | 10MHz | ±30ppm | ±30ppm | 18pF |
| 7A-25.000MAAE-T | TXC晶振 | 7A | 25MHz | ±30ppm | ±30ppm | 12pF |
| 7A-10.000MAAE-T | TXC晶振 | 7A | 10MHz | ±30ppm | ±30ppm | 12pF |
| 7A-14.7456MAAJ-T | TXC晶振 | 7A | 14.7456MHz | ±30ppm | ±30ppm | 18pF |
| 7A-18.432MAAJ-T | TXC晶振 | 7A | 18.432MHz | ±30ppm | ±30ppm | 18pF |
| 7A-12.288MAAJ-T | TXC晶振 | 7A | 12.288MHz | ±30ppm | ±30ppm | 18pF |
| 7A-20.000MAAJ-T | TXC晶振 | 7A | 20MHz | ±30ppm | ±30ppm | 18pF |
| 7A-28.63636MAAJ-T | TXC晶振 | 7A | 28.63636MHz | ±30ppm | ±30ppm | 18pF |
| 7A-16.000MAHE-T | TXC晶振 | 7A | 16MHz | ±30ppm | ±30ppm | 12pF |
| 7A-48.000MAAJ-T | TXC晶振 | 7A | 48MHz | ±30ppm | ±30ppm | 18pF |
| 7A-27.000MAAJ-T | TXC晶振 | 7A | 27MHz | ±30ppm | ±30ppm | 18pF |
| 7A-26.000MAAJ-T | TXC晶振 | 7A | 26MHz | ±30ppm | ±30ppm | 18pF |
| 7A-20.000MAHE-T | TXC晶振 | 7A | 20MHz | ±30ppm | ±30ppm | 12pF |
| 7A-25.000MAHE-T | TXC晶振 | 7A | 25MHz | ±30ppm | ±30ppm | 12pF |
| 7A-14.7456MAAE-T | TXC晶振 | 7A | 14.7456MHz | ±30ppm | ±30ppm | 12pF |
| 7A-14.31818MAAE-T | TXC晶振 | 7A | 14.31818MHz | ±30ppm | ±30ppm | 12pF |
| 7A-24.000MAAE-T | TXC晶振 | 7A | 24MHz | ±30ppm | ±30ppm | 12pF |
| 7A-16.000MAAE-T | TXC晶振 | 7A | 16MHz | ±30ppm | ±30ppm | 12pF |
| 7A-20.000MAAE-T | TXC晶振 | 7A | 20MHz | ±30ppm | ±30ppm | 12pF |
| 7A-12.000MAAE-T | TXC晶振 | 7A | 12MHz | ±30ppm | ±30ppm | 12pF |
| 7A-22.1184MAAJ-T | TXC晶振 | 7A | 22.1184MHz | ±30ppm | ±30ppm | 18pF |
| 7A-29.4912MAAJ-T | TXC晶振 | 7A | 29.4912MHz | ±30ppm | ±30ppm | 18pF |
| 7A-30.000MAAJ-T | TXC晶振 | 7A | 30MHz | ±30ppm | ±30ppm | 18pF |
| 7A-14.31818MAAJ-T | TXC晶振 | 7A | 14.31818MHz | ±30ppm | ±30ppm | 18pF |
| 7A-49.152MAAJ-T | TXC晶振 | 7A | 49.152MHz | ±30ppm | ±30ppm | 18pF |
| 7A-24.576MAAJ-T | TXC晶振 | 7A | 24.576MHz | ±30ppm | ±30ppm | 18pF |
| 7A-18.432MBBK-T | TXC晶振 | 7A | 18.432MHz | ±50ppm | ±50ppm | 20pF |
| 7A-24.576MBBK-T | TXC晶振 | 7A | 24.576MHz | ±50ppm | ±50ppm | 20pF |
| 7A-28.63636MAHJ-T | TXC晶振 | 7A | 28.63636MHz | ±30ppm | ±30ppm | 18pF |
| 7A-33.3333MAAE-T | TXC晶振 | 7A | 33.3333MHz | ±30ppm | ±30ppm | 12pF |
| 7A-13.000MAHJ-T | TXC晶振 | 7A | 13MHz | ±30ppm | ±30ppm | 18pF |
| 7A-40.000MAHE-T | TXC晶振 | 7A | 40MHz | ±30ppm | ±30ppm | 12pF |
| 7A-18.432MAAE-T | TXC晶振 | 7A | 18.432MHz | ±30ppm | ±30ppm | 12pF |
| 7A-11.0592MAAE-T | TXC晶振 | 7A | 11.0592MHz | ±30ppm | ±30ppm | 12pF |
| 7A-8.000MAHJ-T | TXC晶振 | 7A | 8MHz | ±30ppm | ±30ppm | 18pF |
| 7A-22.1184MAAE-T | TXC晶振 | 7A | 22.1184MHz | ±30ppm | ±30ppm | 12pF |
| 7A-13.560MAAE-T | TXC晶振 | 7A | 13.56MHz | ±30ppm | ±30ppm | 12pF |
