石英晶體振蕩器
- 編號：39655300
- 頻率：148.351648MHz
- 尺寸：5.0x3.2mm
IDT差分晶體振蕩器,XLL52V125.000000X,6G路由器晶振
IDT差分晶體振蕩器,XLL52V125.000000X,6G路由器晶振,XLL53V045.000000X,低抖動晶振，美國進口晶振，IDT艾迪悌晶振XLL系列，編碼為：XLL52V125.000000X，頻率為：125.000MHz，小體積尺寸5.0x3.2mm，六腳貼片晶振，有源...
IDT差分晶體振蕩器,XLL52V125.000000X,6G路由器晶振,XLL53V045.000000X,低抖動晶振，美國進口晶振，IDT艾迪悌晶振XLL系列，編碼為：XLL52V125.000000X，頻率為：125.000MHz，小體積尺寸5.0x3.2mm，六腳貼片晶振，有源晶振，石英晶體振蕩器，LVDS差分晶體振蕩器，具有0.89ps的典型相位抖動，超過12 kHz到20MHz的帶寬。IDT XLL系列晶體振蕩器的頻率范圍從0.750MHz到1350MHz，采用了一系列專有的asic，重點關注降噪技術。三階德爾塔-西格瑪調制器將噪聲降低到與傳統大塊石英和SAW振蕩器相當的水平。XLL系列有源晶振交付周期短、成本低、噪音低、頻率范圍寬、環境性能優異，是傳統技術的絕佳選擇。XLL的穩定性高達±20ppm，速度極快，提供標準頻率和自定義頻率。廣泛應用于：通訊設備、機頂盒、光端機、安防設備、路由器/交換機、儀器儀表、SATA，SAS，光纖通信，10G以太網及各種頻率控制設備上。
IDT差分晶體振蕩器,XLL52V125.000000X,6G路由器晶振,XLL53V045.000000X,低抖動晶振，參數表
| Parameter | Symbol | Condition | Min | Typ | Max | Units | ||||||||||||||||||||||
| Output Frequency Range | FOUTR | 125 | MHz | |||||||||||||||||||||||||
| Frequency Stability | Temperature = -20°C to +70°C | ±20 | ±100 | ppm | ||||||||||||||||||||||||
| Temperature = -40°C to +85°C | ±25 | ±100 | ppm | |||||||||||||||||||||||||
| Aging(1st year) | Ta = 25°C | 3 | ||||||||||||||||||||||||||
| Aging (10 years) | Ta = 25°C | 10 | ||||||||||||||||||||||||||
| Output Load | Differential | 100 | Ohms | |||||||||||||||||||||||||
| Start-up Time | TST |
Output valid time after VDD meets minimum specified level |
10 | ms | ||||||||||||||||||||||||

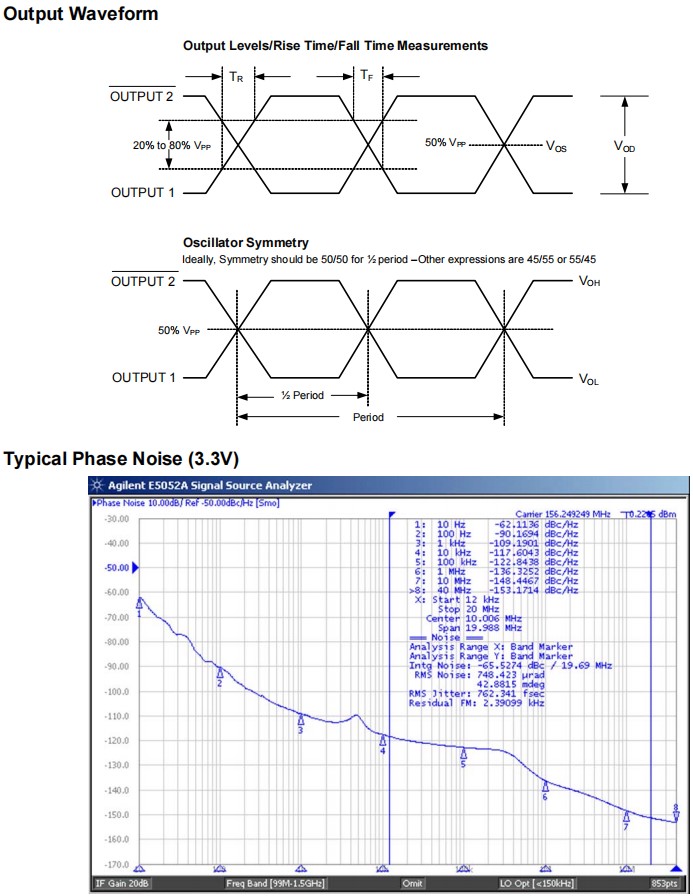

| Output Rise Time | 20% to 80% VPP | 400 | ps | |||||||||||||||||||||||||
| Output Fall Time | 80% to 20% VPP | 400 | ps | |||||||||||||||||||||||||
| Output Clock Duty Cycle | TDTCY | 50%VP-P | 45 | 55 | % | |||||||||||||||||||||||
| Output Enable/ Disable Time | TOE | 100 | ns | |||||||||||||||||||||||||
| Period Jitter, RMS | J PER | Frequency = 156.25MHz | 3.0 | ps | ||||||||||||||||||||||||
| Random Jitter | RJ |
Frequency = 156.25MHz Per MJSQ spec (Methodologies for Jitter and Signal Quality specifications) |
1.3 | ps | ||||||||||||||||||||||||
| Deterministic Jitter | DJ | 5.8 | ps | |||||||||||||||||||||||||
| Total Jitter | TJ | 23.6 | ps | |||||||||||||||||||||||||
| Phase Jitter (12kHz – 20MHz) | φJITTER | Common Frequencies | 0.89 | ps | ||||||||||||||||||||||||
|
Phase Noise Performance Frequency = 156.25MHz |
φNOISE | 100Hz of Carrier | -80 | dBc/Hz | ||||||||||||||||||||||||
| 1kHz of Carrier | -115 | dBc/Hz | ||||||||||||||||||||||||||
| 10kHz of Carrier | -118 | dBc/Hz | ||||||||||||||||||||||||||
| 100kHz of Carrier | -124 | dBc/Hz | ||||||||||||||||||||||||||
| 1MHz of Carrier | -142 | dBc/Hz | ||||||||||||||||||||||||||
| 10MHz of Carrier | -151 | dBc/Hz | ||||||||||||||||||||||||||
| Output Frequency (Common) | F OUT |
100MHz, 106.25MHz, 1258MHz, 150MHz, 155.52MHz, 156.25MHz, 200MHz,212.5MHz, 250MHz, 300MHz, 312.5MHZ, 400MHz (Contact IDT for additional frequencies) |
||||||||||||||||||||||||||

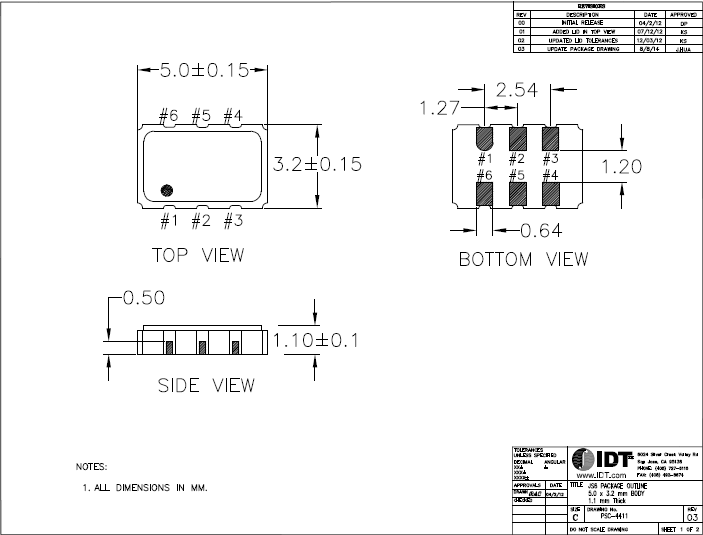

IDT差分晶體振蕩器,XLL52V125.000000X,6G路由器晶振,XLL53V045.000000X,低抖動晶振，尺寸圖

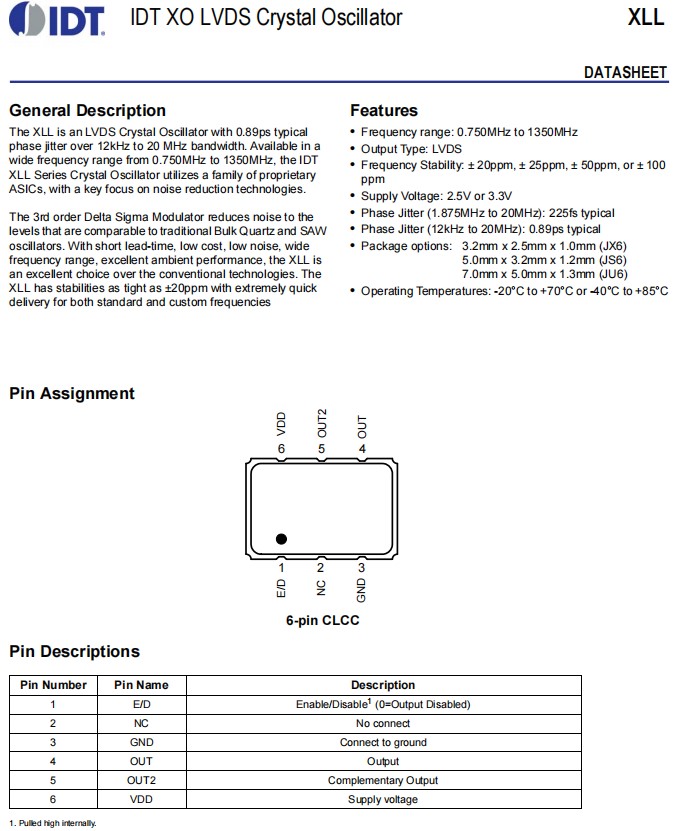

IDT差分晶體振蕩器,XLL52V125.000000X,6G路由器晶振,XLL53V045.000000X,低抖動晶振
產品特點：
頻率范圍：0.750MHz至1350MHz
輸出類型：LVDS輸出石英晶體振蕩器
頻率穩定性：±20ppm、±25ppm、±50ppm或±100ppm
電源電壓：2.5V或3.3V
相位抖動（1.875MHz至20MHz）：典型225fs
相位抖動（12kHz至20MHz）：典型值為0.89ps
包裝選項：3.2mm x 2.5mm x 1.0mm（JX6）
5.0毫米x 3.2毫米x 1.2毫米（JS6）
7.0毫米x 5.0毫米x 1.3毫米（JU6）
工作溫度：-20°C至+70°C或-40°C至+85°C
| 貼片石英晶振 | 品牌 | 參數 | 型號 | 頻率 |
| XLL526125.000000I | IDT晶振 | OSC XO 125.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 125MHz |
| XLL536125.000000I | IDT晶振 | OSC XO 125.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 125MHz |
| XLL52V125.000000X | IDT晶振 | OSC VCXO 125.000MHZ LVDS SMD | XPRESSO™ FVXO-LC52 | 125MHz |
| XLL536150.000000I | IDT晶振 | OSC XO 150.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 150MHz |
| XLL536016.000000X | IDT晶振 | OSCILLATOR XO 16.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 16MHz |
| XLL528200.000000X | IDT晶振 | OSC XO 200.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 200MHz |
| XLL52V148.500000X | IDT晶振 | OSC VCXO 148.5MHZ LVDS SMD | XPRESSO™ FVXO-LC52 | 148.5MHz |
| XLL52V148.351648X | IDT晶振 | OSC VCXO 148.351648MHZ LVDS SMD | XPRESSO™ FVXO-LC52 | 148.351648MHz |
| XLL52V074.250000X | IDT晶振 | OSC VCXO 74.25MHZ LVDS SMD | XPRESSO™ FVXO-LC52 | 74.25MHz |
| XLL53V045.000000X | IDT晶振 | OSC VCXO 45.000MHZ LVDS SMD | XPRESSO™ FVXO-LC53 | 45MHz |
| XLL520085.000000X | IDT晶振 | OSCILLATOR XO 85.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 85MHz |
| XLL525156.250000X | IDT晶振 | OSCILLATOR XO 156.25MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 156.25MHz |
| XLL525148.500000X | IDT晶振 | OSCILLATOR XO 148.5MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 148.5MHz |
| XLL530074.250000X | IDT晶振 | OSCILLATOR XO 74.25MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 74.25MHz |
| XLL535180.000000X | IDT晶振 | OSC XO 180.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 180MHz |
| XLL52V074.175824X | IDT晶振 | OSC VCXO 74.175824MHZ LVDS SMD | XPRESSO™ FVXO-LC52 | 74.175824MHz |
| XLL52V644.531250X | IDT晶振 | OSC VCXO 644.53125MHZ LVDS SMD | XPRESSO™ FVXO-LC52 | 644.53125MHz |
| XLL52V160.000000I | IDT晶振 | OSC VCXO 160.000MHZ LVDS SMD | XPRESSO™ FVXO-LC52 | 160MHz |
| XLL52V025.000000I | IDT晶振 | OSC VCXO 25.000MHZ LVDS SMD | XPRESSO™ FVXO-LC52 | 25MHz |
| XLL525200.000000I | IDT晶振 | OSC XO 200.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 200MHz |
| XLL525100.000000I | IDT晶振 | OSC XO 100.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 100MHz |
| XLL528125.000000X | IDT晶振 | OSC XO 125.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 125MHz |
| XLL530300.000000X | IDT晶振 | OSC XO 300.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 300MHz |
| XLL530156.250000I | IDT晶振 | OSCILLATOR XO 156.25MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 156.25MHz |
| XLL535A90.000000X | IDT晶振 | OSCILLATOR XO 1.09GHZ LVDS SMD | XPRESSO™ FXO-LC53 | 1.09GHz |
| XLL535210.000000X | IDT晶振 | OSC XO 210.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 210MHz |
| XLL535160.000000I | IDT晶振 | OSC XO 160.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 160MHz |
| XLL535156.250000I | IDT晶振 | OSCILLATOR XO 156.25MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 156.25MHz |
| XLL535020.000000I | IDT晶振 | OSCILLATOR XO 20.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 20MHz |
| XLL536156.250000X | IDT晶振 | OSCILLATOR XO 156.25MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 156.25MHz |
| XLL536100.000000X | IDT晶振 | OSC XO 100.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 100MHz |
| XLL536050.000000X | IDT晶振 | OSCILLATOR XO 50.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 50MHz |
| XLL538156.250000X | IDT晶振 | OSCILLATOR XO 156.25MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 156.25MHz |
| XLL538100.000000X | IDT晶振 | OSC XO 100.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 100MHz |
| XLL538050.000000X | IDT晶振 | OSCILLATOR XO 50.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 50MHz |
| XLL538001.000000X | IDT晶振 | OSCILLATOR XO 1.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 1MHz |
| XLL526148.500000X | IDT晶振 | OSCILLATOR XO 148.5MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 148.5MHz |
| XLL526100.000000X | IDT晶振 | OSC XO 100.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 100MHz |
| XLL526050.000000X | IDT晶振 | OSCILLATOR XO 50.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 50MHz |
| XLL53VC00.000000I | IDT晶振 | OSCILLATOR VCXO 1.2GHZ LVDS SMD | XPRESSO™ FVXO-LC53 | 1.2GHz |
| XLL526156.250000I | IDT晶振 | OSCILLATOR XO 156.25MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 156.25MHz |
| XLL526025.000000I | IDT晶振 | OSCILLATOR XO 25.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 25MHz |
| XLL530C80.000000I | IDT晶振 | OSCILLATOR XO 1.28GHZ LVDS SMD | XPRESSO™ FXO-LC53 | 1.28GHz |
| XLL535400.000000I | IDT晶振 | OSC XO 400.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 400MHz |
| XLL535333.000000I | IDT晶振 | OSC XO 333.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 333MHz |
| XLL535250.000000I | IDT晶振 | OSC XO 250.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 250MHz |
| XLL536400.000000X | IDT晶振 | OSC XO 400.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 400MHz |
| XLL536200.000000X | IDT晶振 | OSC XO 200.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 200MHz |
| XLL536090.000000I | IDT晶振 | OSCILLATOR XO 90.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 90MHz |
| XLL536050.000000I | IDT晶振 | OSCILLATOR XO 50.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 50MHz |
| XLL536025.000000I | IDT晶振 | OSCILLATOR XO 25.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 25MHz |
| XLL536010.000000I | IDT晶振 | OSCILLATOR XO 10.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 10MHz |
| XLL538C00.000000X | IDT晶振 | OSCILLATOR XO 1.2GHZ LVDS SMD | XPRESSO™ FXO-LC53 | 1.2GHz |
| XLL538A00.000000X | IDT晶振 | OSCILLATOR XO 1.000GHZ LVDS SMD | XPRESSO™ FXO-LC53 | 1GHz |
| XLL538312.500000X | IDT晶振 | OSCILLATOR XO 312.5MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 312.5MHz |
| XLL526155.520000I | IDT晶振 | OSC XO 155.520MHZ LVDS SMD | XLL | 155.52MHz |
| XLL526400.000000I | IDT晶振 | OSC XO 400.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 400MHz |
| XLL536A00.000000I | IDT晶振 | OSCILLATOR XO 1.000GHZ LVDS SMD | XPRESSO™ FXO-LC53 | 1GHz |
| XLL536500.000000I | IDT晶振 | OSC XO 500.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 500MHz |
| XLL536400.000000I | IDT晶振 | OSC XO 400.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 400MHz |
| XLL536250.000000I | IDT晶振 | OSC XO 250.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 250MHz |
| XLL536200.000000I | IDT晶振 | OSC XO 200.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 200MHz |
| XLL53VA00.000000X | IDT晶振 | OSC VCXO 1.000GHZ LVDS SMD | XPRESSO™ FVXO-LC53 | 1GHz |
| XLL53V877.714285X | IDT晶振 | OSC VCXO 877.714285MHZ LVDS SMD | XPRESSO™ FVXO-LC53 | 877.714285MHz |
| XLL53V500.000000X | IDT晶振 | OSC VCXO 500.000MHZ LVDS SMD | XPRESSO™ FVXO-LC53 | 500MHz |
| XLL53VA00.000000I | IDT晶振 | OSC VCXO 1.000GHZ LVDS SMD | XPRESSO™ FVXO-LC53 | 1GHz |
| XLL53V622.080000I | IDT晶振 | OSC VCXO 622.08MHZ LVDS SMD | XPRESSO™ FVXO-LC53 | 622.08MHz |
| XLL53V250.000000I | IDT晶振 | OSC VCXO 250.000MHZ LVDS SMD | XPRESSO™ FVXO-LC53 | 250MHz |
| XLL525200.000000X | IDT晶振 | OSC XO 200.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 200MHz |
| XLL525164.000000X | IDT晶振 | OSC XO 164.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 164MHz |
| XLL525125.000000X | IDT晶振 | OSC XO 125.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 125MHz |
| XLL525125.000000I | IDT晶振 | OSC XO 125.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 125MHz |
| XLL526200.000000X | IDT晶振 | OSC XO 200.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 200MHz |
| XLL526125.000000X | IDT晶振 | OSC XO 125.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 125MHz |
| XLL526060.000000I | IDT晶振 | OSCILLATOR XO 60.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 60MHz |
| XLL528212.500000X | IDT晶振 | OSCILLATOR XO 212.5MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 212.5MHz |
| XLL528025.000000X | IDT晶振 | OSCILLATOR XO 25.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 25MHz |
| XLL530148.500000X | IDT晶振 | OSCILLATOR XO 148.5MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 148.5MHz |
| XLL530025.000000X | IDT晶振 | OSCILLATOR XO 25.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 25MHz |
| XLL535250.000000X | IDT晶振 | OSC XO 250.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 250MHz |
| XLL535125.000000X | IDT晶振 | OSC XO 125.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 125MHz |
| XLL535100.000000X | IDT晶振 | OSC XO 100.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 100MHz |
| XLL535A00.000000I | IDT晶振 | OSCILLATOR XO 1.000GHZ LVDS SMD | XPRESSO™ FXO-LC53 | 1GHz |
| XLL535622.080000I | IDT晶振 | OSCILLATOR XO 622.08MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 622.08MHz |
| XLL535312.500000I | IDT晶振 | OSCILLATOR XO 312.5MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 312.5MHz |
| XLL535200.000000I | IDT晶振 | OSC XO 200.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 200MHz |
| XLL535150.000000I | IDT晶振 | OSC XO 150.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 150MHz |
| XLL535125.000000I | IDT晶振 | OSC XO 125.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 125MHz |
| XLL535106.250000I | IDT晶振 | OSCILLATOR XO 106.25MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 106.25MHz |
| XLL535100.000000I | IDT晶振 | OSC XO 100.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 100MHz |
| XLL535025.000000I | IDT晶振 | OSCILLATOR XO 25.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 25MHz |
| XLL536250.000000X | IDT晶振 | OSC XO 250.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 250MHz |
| XLL536075.000000X | IDT晶振 | OSCILLATOR XO 75.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 75MHz |
| XLL536080.000000I | IDT晶振 | OSCILLATOR XO 80.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 80MHz |
| XLL536064.000000I | IDT晶振 | OSCILLATOR XO 64.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 64MHz |
| XLL536037.500000I | IDT晶振 | OSCILLATOR XO 37.5MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 37.5MHz |
| XLL538300.000000X | IDT晶振 | OSC XO 300.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 300MHz |
| XLL526150.000000X | IDT晶振 | OSC XO 150.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 150MHz |
| XLL536062.500000I | IDT晶振 | OSCILLATOR XO 62.5MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 62.5MHz |
| XLL536156.250000I | IDT晶振 | OSCILLATOR XO 156.25MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 156.25MHz |
| XLL536160.000000I | IDT晶振 | OSC XO 160.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 160MHz |
| XLL526100.000000I | IDT晶振 | OSC XO 100.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 100MHz |
| XLL536100.000000I | IDT晶振 | OSC XO 100.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 100MHz |
| XLL536148.500000I | IDT晶振 | OSCILLATOR XO 148.5MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 148.5MHz |
| XLL526200.000000I | IDT晶振 | OSC XO 200.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | 200MHz |
| XLL530012.000000I | IDT晶振 | OSCILLATOR XO 12.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 12MHz |

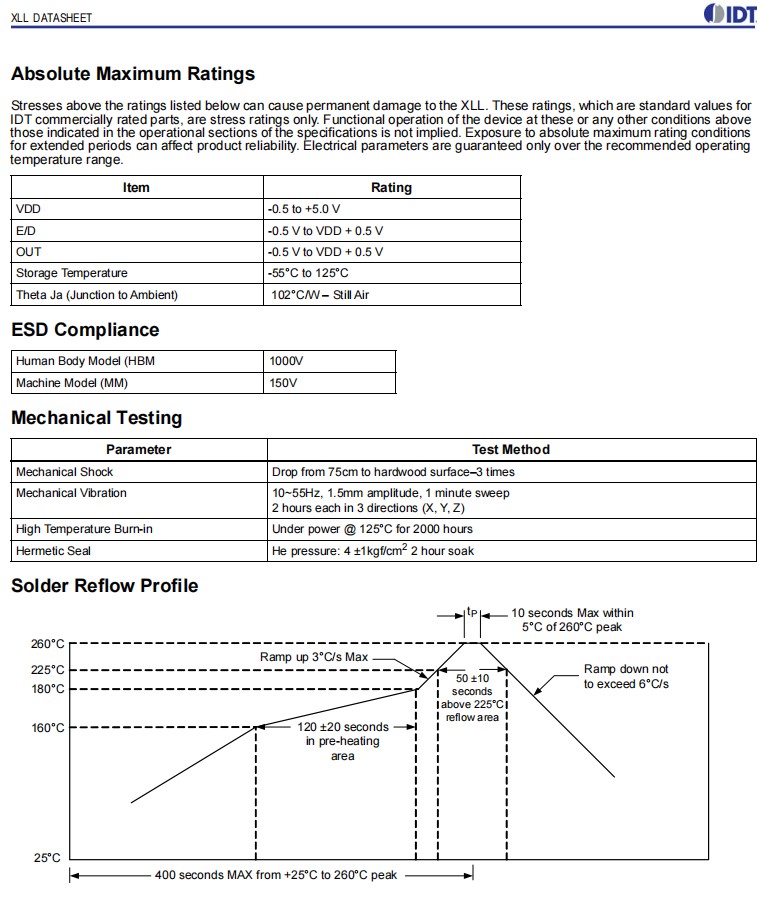

| XLL535040.000000I | IDT晶振 | OSCILLATOR XO 40.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | 40MHz |
深圳市康華爾電子有限公司SHENZHEN KONUAER ELECTRONICS CO.,LTD
電 話：0755-27838351
手 機：13823300879
Q Q：632862232
E-mail：konuaer@163.com
網 址：http://www.theqj.cn
地 址：廣東深圳市寶安寶安大道東95號浙商銀行大廈1905
業務經理
