臺灣H.ELE加高晶體諧振器,HSX211G石英貼片晶振,平板電腦6G晶振

編號：31836287
頻率：16~54MHz
尺寸：2.0x1.6mm

臺灣H.ELE加高晶體諧振器,HSX211G石英貼片晶振,平板電腦6G晶振,無鉛環保晶振,小型便捷式設備晶振，臺灣H.ELE加高晶振，型號：HSX211G，小體積晶振尺寸：2.0x1.6mm封裝，石英晶體諧振器，四腳貼片晶振，無源晶振，貼片...

臺灣H.ELE加高晶體諧振器,HSX211G石英貼片晶振,平板電腦6G晶振,無鉛環保晶振,小型便捷式設備晶振，臺灣H.ELE加高晶振，型號：HSX211G，小體積晶振尺寸：2.0x1.6mm封裝，石英晶體諧振器，四腳貼片晶振，無源晶振，貼片石英晶振，無鉛環保晶振，頻率范圍：16MHz至54MHz，工作溫度范圍選項：-30℃至+85℃，-40℃至 +105℃，-40℃至+125℃。具有超小型，輕薄型，高性能，高品質，耐熱及耐環境特點。被廣泛應用于：汽車電子，手機晶振，車載控制器，通訊設備，無線網絡，藍牙模塊，可穿戴設備，小型便捷式設備，平板電腦，消費電子，數碼電子等應用。

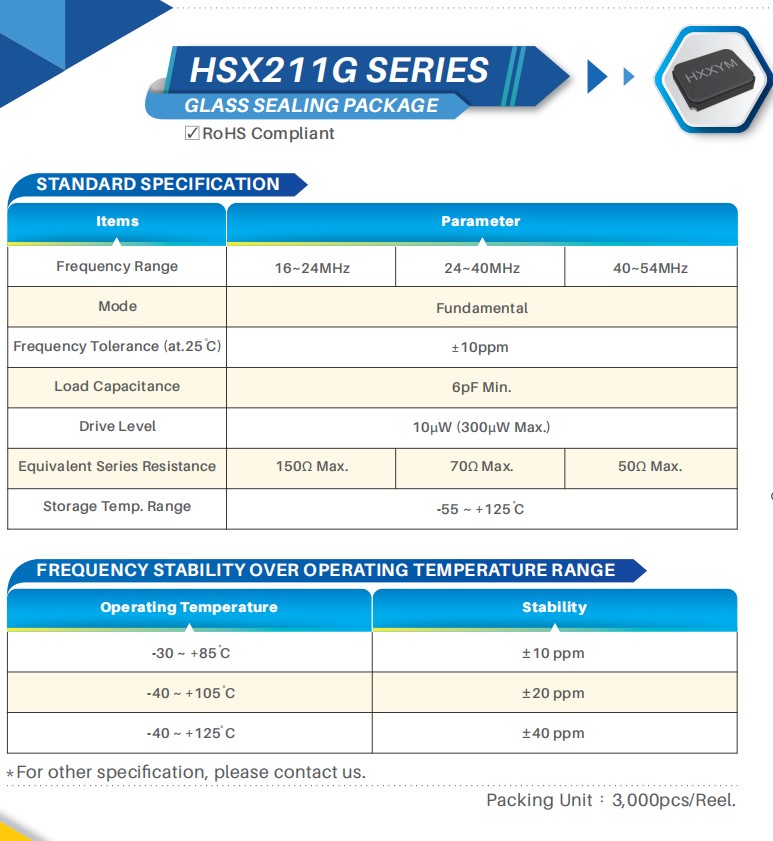

臺灣H.ELE加高晶體諧振器,HSX211G石英貼片晶振,平板電腦6G晶振,無鉛環保晶振,小型便捷式設備晶振，參數表

Frequency Range	16~24MHz	24~40MHz	40~54MHz
Mode	Fundamental
Frequency Tolerance (at.25 C)	±10ppm
Load Capacitance	6pF Min.
Drive Level	10μW (300μW Max.)
Equivalent Series Resistance	150Ω Max.	70Ω Max.	50Ω Max.
Storage Temp. Range	-55 ~ +125 C

臺灣H.ELE加高晶體諧振器,HSX211G石英貼片晶振,平板電腦6G晶振,無鉛環保晶振,小型便捷式設備晶振，尺寸圖

臺灣H.ELE加高晶體諧振器,HSX211G石英貼片晶振,平板電腦6G晶振,無鉛環保晶振,小型便捷式設備晶振
2016mm體積的晶振,可以說是目前小型數碼產品的福音,目前超小型的智能手機里面所應用的就是小型的石英晶振,該產品最適用于無線通訊系統,無線局域網,已實現低相位噪聲,低電壓,低消費電流和高穩定度,超小型,質量輕等產品特點,產品本身編帶包裝方式,可對應自動高速貼片機應用,以及高溫回流焊接（產品無鉛對應）,為無鉛產品.

編碼	型號	加高晶振	描述
X3S027000BA1H-U	HSX321S	H.ELE加高	HSX321S/27MHZ/10PF/10PPM/10PPM@-
X3S024000B91H-HS	HSX321S	H.ELE加高	HSX321S/24MHZ/9PF/10PPM/15PPM@-4
X3S027120BA1H-X	HSX321S	H.ELE加高	HSX321S/27.12MHZ/10PF/10PPM/20PP
X3S032000BC1HA-CHPZ	HSX321S	H.ELE加高	HSX321S/32MHZ/12PF/10PPM/10PPM@-
X3S016000DI1H-HW	HSX321S	H.ELE加高	HSX321S/16MHZ/18PF/20PPM/20PPM@-
X3S012000FI1H-HV	HSX321S	H.ELE加高	HSX321S/12MHZ/18PF/30PPM/30PPM@-
X3S025000D81H-HU	HSX321S	H.ELE加高	HSX321S/25MHZ/8PF/20PPM/20PPM@-4
X3S026000B91H-NZ	HSX321S	H.ELE加高	HSX321S/26MHZ/9PF/10PPM/10PPM@-3
X2B026000M81H-HS	HSX221SA	H.ELE加高	HSX221SA/26MHZ/8PF/7PPM/15PPM/-4
X2B016000BA1H-U	HSX221SA	H.ELE加高	HSX221SA/16MHZ/10PF/10PPM/10PPM/
X2B012000BC1H-U	HSX221SA	H.ELE加高	HSX221SA/12MHZ/12PF/10PPM/20PPM/
X2B040000BC1H-DHZ	HSX221SA	H.ELE加高	HSX221SA/40MHZ/12PF/10PPM/10PPM/
X2C025000DZ1H-U	HSX211S	H.ELE加高	HSX211S/25MHZ/6PF/20PPM/20PPM@-3
X2C032000BA1H-HZ	HSX211S	H.ELE加高	HSX211S/32MHZ/10PF/10PPM/15PPM@-
X2C024000DZ1H-HU	HSX211S	H.ELE加高	HSX211S/24MHZ/6PF/20PPM/20PPM@-3
X2C016000B81H-R	HSX211S	H.ELE加高	HSX211S/16MHZ/8PF/10PPM/10PPM@-2
X2C026000BC1H-Z	HSX211S	H.ELE加高	HSX211S/26MHZ/12PF/10PPM/10PPM@-
X1C032000B81H-HR	HSX111S	H.ELE加高	HSX111S/32MHZ/8PF/10PPM/10PPM@-2
X1C024000B81H-HV	HSX111S	H.ELE加高	HSX111S/24MHZ/8PF/10PPM/30PPM@-4
X2C048000L71HH-CEHZ	HSX211S	H.ELE加高	HSX211S/48MHZ/11.1PF/8PPM/14PPM/
X2R026000BZ1HAZ-DHPZ	HSX221SR	H.ELE加高	HSX221SR/26MHZ/7PF/10PPM/-30~105
X1R038400B81HA-CEHPZ	HSX111SR	H.ELE加高	HSX111SR/38.4MHZ/8PF/10PPM/-40~1
X2U026000B81HBZ-DHPZ	HSX211SR	H.ELE加高	HSX211SR/26MHZ/8PF/10PPM/-40~105
X2R026000B91HZ-DEHPZ	HSX221SR	H.ELE加高	HSX221SR/26MHZ/9PF/10PPM/-30~85C
X2R019200BZ1H-CHZ	HSX221SR	H.ELE加高	HSX221SR/19.2MHZ/7PF/10PPM/-30~8
X2U019200BZ1H-CEHQZ	HSX211SR	H.ELE加高	HSX211SR/19.2MHZ/7PF/10PPM/-40~1
X2U038400B81H-EPQZ	HSX211SR	無源晶振	HSX211SR/38.4MHZ/8PF/10PPM/-30~1
X1R052000B81HZ-DEHPZ	HSX111SR	H.ELE加高	HSX111SR/52MHZ/8PF/10PPM/-40~105
X12A040000BZ1H-HZ	HSX1210A	H.ELE加高	HSX1210A/40MHZ/6PF/10PPM/12PPM/-
X12A032000B81H-HZ	HSX1210A	H.ELE加高	HSX1210A/32MHZ/8PF/10PPM/10PPM/-
X3S012000BK1H	HSX321S	H.ELE加高	SMD Crystal Resonators 12MHz ±10ppm SMD-3225_4P RoHS
X3S025000BK1H	HSX321S	H.ELE加高	SMD Crystal Resonators 25MHz ±10ppm SMD-3225_4P RoHS
X3S038400B91H-HU	HSX321S	H.ELE加高	SMD Crystal Resonators 38.4MHz ±10ppm SMD-3225_4P RoHS
X2B012000DC1H-X	HSX221SA	H.ELE加高	SMD Crystal Resonators 12MHz ±20ppm SMD-2520_4P RoHS
X2B016000B91H-HU	HSX221SA	H.ELE加高	SMD Crystal Resonators 16MHz ±10ppm SMD-2520_4P RoHS
X3S037400B91H-Z	HSX321S	H.ELE加高	SMD Crystal Resonators 37.4MHz ±10ppm SMD-3225_4P RoHS
X3S024000B91HA-R	HSX321S	H.ELE加高	SMD Crystal Resonators 24MHz ±10ppm SMD-3225_4P RoHS
X3S024000BK1H	HSX321S	H.ELE加高	SMD Crystal Resonators 24MHz ±10ppm SMD-3225_4P RoHS
X2B027000BC1H-HU	HSX221SA	H.ELE加高	SMD Crystal Resonators 27MHz ±10ppm SMD-2520_4P RoHS
X3S024000BG1HA-Z	HSX321S	H.ELE加高	SMD Crystal Resonators 24MHz ±10ppm SMD-3225_4P RoHS
X3S040000BA1H-R	HSX321S	H.ELE加高	SMD Crystal Resonators 40MHz ±10ppm SMD-3225_4P RoHS
X3S024000B91H-DEPV	HSX321S	H.ELE加高	SMD Crystal Resonators SMD-3225_4P RoHS
X3S037400BA1H-Z	HSX321S	H.ELE加高	SMD Crystal Resonators SMD_3225-4P RoHS
X3S019200BZ1H-CHZ	HSX321S	H.ELE加高	SMD Crystal Resonators SMD-3225_4P RoHS
X2B032000BC1H-HZ	HSX221SA	H.ELE加高	SMD Crystal Resonators SMD-2520_4P RoHS
X3S013000BA1H-V	HSX321S	H.ELE加高	SMD Crystal Resonators SMD_3225-4P RoHS
X3S026000B71HA-R	HSX321S	H.ELE加高	SMD Crystal Resonators SMD_3225-4P RoHS
X3S027120DC1H-V	HSX321S	H.ELE加高	SMD Crystal Resonators SMD_3225-4P RoHS
X3S01431AFK1H	HSX321S	H.ELE加高	SMD Crystal Resonators SMD-3225-4P RoHS
X3S026000BB1H-CHZ	HSX321S	H.ELE加高	SMD Crystal Resonators 26MHz ±10ppm SMD-3225_4P RoHS
X3S016384DI1H-W	HSX321S	H.ELE加高	SMD Crystal Resonators SMD_3225-4P RoHS
