石英晶體振蕩器
- 編號：51839874
- 頻率：40MHz
- 尺寸：3.2x2.5mm
FC3VREEDM40.0-T1,FC3VR,3225mm,40MHz,FOX輕薄型晶振
FC3VREEDM40.0-T1,FC3VR,3225mm,40MHz,FOX輕薄型晶振,FC3VREEGM40.0-T1,車載控制器晶振，美國進口晶振，F(xiàn)OX晶振，福克斯晶振，型號：FC3VR石英晶振，編碼為：FC3VREEDM40.0-T1，頻率為：40MHz，頻率穩定性：20ppm，頻...
.jpg)
TXC,NDK,希華.jpg)
FC3VREEDM40.0-T1,FC3VR,3225mm,40MHz,FOX輕薄型晶振,FC3VREEGM40.0-T1,車載控制器晶振，美國進口晶振，F(xiàn)OX晶振，福克斯晶振，型號：FC3VR石英晶振，編碼為：FC3VREEDM40.0-T1，頻率為：40MHz，頻率穩定性：±20ppm，頻率容差：±20ppm，工作溫度范圍：-40℃至+85℃，負載電容：8pF，小體積晶振尺寸：3.2x2.5x0.8mm封裝，抗振動晶體，四腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，3225晶振。具有超小型，輕薄型，高性能，高品質，耐熱及耐環境特點。被廣泛應用于：通訊設備晶振，車載控制器晶振，無線藍牙晶振，數碼電子晶振，安防設備等應用。
格發TXC,NDK,希華.jpg)
.jpg)
FC3VREEDM40.0-T1,FC3VR,3225mm,40MHz,FOX輕薄型晶振,FC3VREEGM40.0-T1,車載控制器晶振,參數表
| PARAMETERS | MAX (Unless otherwise noted) | ||||||||||||
| Frequency Range | 40 MHz | ||||||||||||
| Resonance Mode | Fundamental | ||||||||||||
| Frequency Tolerance @ 25°C | (See options below) | ||||||||||||
| Frequency Stability, ref 25°C | (See options below) | ||||||||||||
|
Temperature Range Operating (TOPR) Storage (TSTG) |
(See options below) -55°C ~ +125°C |
||||||||||||
| Equivalent Series Resistance (ESR) | 60Ω Max | ||||||||||||
| Shunt Capacitance (CO) | 3.0 pF | ||||||||||||
| Load Capacitance (CL) | (See options below) | ||||||||||||
| Drive Level | 100µW | ||||||||||||
| Aging per year (@ 25°C) | ±5 PPM | ||||||||||||
| Vibration Sensitivity | 0.2 ppb/G | ||||||||||||
| Maximum Soldering Temp / Time | 260°C / 10 Seconds x 2 | ||||||||||||
|
Moisture Sensitivity Level (MSL) per J-STD-033 |
N/A | ||||||||||||
| Termination Finish |
Au (0.3~0.75µm) over Ni (1.27~8.89µm) |
||||||||||||
| Seal Method | Seam | ||||||||||||
| Lead (Pb) Free | Yes | ||||||||||||
| RoHS Compliant | Yes, no exemptions | ||||||||||||
| RoHS/REACH Compliant | Yes |
TXC,NDK,希華.jpg)

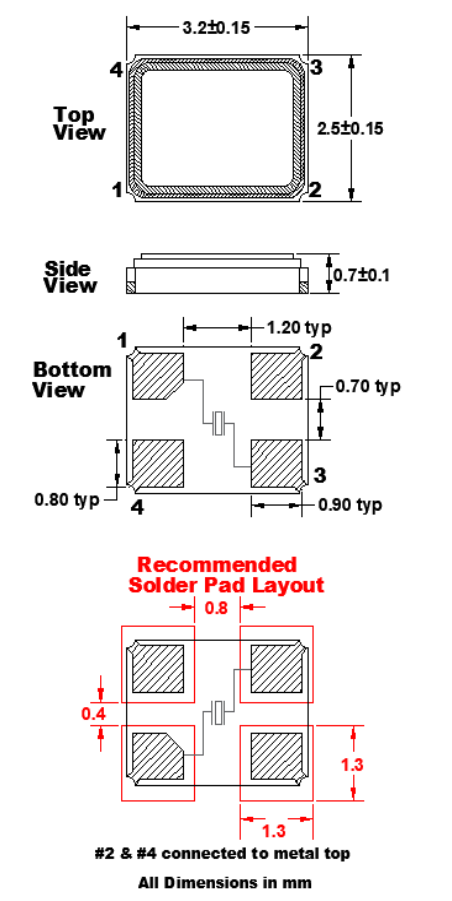

FC3VREEDM40.0-T1,FC3VR,3225mm,40MHz,FOX輕薄型晶振,FC3VREEGM40.0-T1,車載控制器晶振,尺寸圖
格.jpg)
| 產品編碼 | 品牌 | 型號 | 頻率 | 頻率穩定性 | 頻率容差 | 負載電容 |
| FC3BSBBEM26.0-T3 | Fox晶振 | FC3BS | 26 MHz | ±50ppm | ±50ppm | 10 pF |
| FC3BSBBLM25.0-T3 | Fox晶振 | FC3BS | 25 MHz | ±50ppm | ±50ppm | 18 pF |
| FC3BSBBMM25.0-T3 | Fox晶振 | FC3BS | 25 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BSHFEM12.0-T3 | Fox晶振 | FC3BS | 12 MHz | ±15ppm | ±10ppm | 10 pF |
| FC3BSHHEF26.0-T3 | Fox晶振 | FC3BS | 26 MHz | ±10ppm | ±10ppm | 10 pF |
| FC3BSHHEF32.0-T3 | 進口晶振 | FC3BS | 32 MHz | ±10ppm | ±10ppm | 10 pF |
| FC3BSHLGA27.0-1-T3 | Fox晶振 | FC3BS | 27 MHz | ±5ppm | ±10ppm | 12 pF |
| FC3VAEEGM50.0-T3 | Fox晶振 | FC3VA | 50 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEDM38.4-T1 | Fox晶振 | FC3VR | 38.4 MHz | ±20ppm | ±20ppm | 8 pF |
| FC3VREEDM38.88-T1 | Fox晶振 | FC3VR | 38.88 MHz | ±20ppm | ±20ppm | 8 pF |
| FC3VREEDM40.0-T1 | Fox晶振 | FC3VR | 40 MHz | ±20ppm | ±20ppm | 8 pF |
| FC3VREEDM48.0-T1 | Fox晶振 | FC3VR | 48 MHz | ±20ppm | ±20ppm | 8 pF |
| FC3VREEEM38.4-T1 | Fox晶振 | FC3VR | 38.4 MHz | ±20ppm | ±20ppm | 10 pF |
| FC3VREEGM36.0-T1 | Fox晶振 | FC3VR | 36 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEGM38.4-T1 | Fox晶振 | FC3VR | 38.4 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEGM38.88-T1 | Fox晶振 | FC3VR | 38.88 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEGM40.0-T1 | Fox晶振 | FC3VR | 40 MHz | ±20ppm | ±20ppm | 12 pF |
| FC3VREEGM50.0-T1 | Fox晶振 | FC3VR | 50 MHz | ±20ppm | ±20ppm | 12 pF |
