石英晶體振蕩器
- 編號：97904499
- 頻率：12.288MHz
- 尺寸：7.0x5.0mm
ConnorWinfield振蕩器,CWX813-012.288M,CMOS時鐘振蕩器
ConnorWinfield振蕩器,CWX813-012.288M,CMOS時鐘振蕩器,CWX813-001.8432M,導航儀6G晶振，美國進口晶振，ConnorWinfield康納溫菲爾德晶振，CWX8xx系列編碼為：CWX813-012.288M，頻率為：12.288MHz，是一款小體積晶振尺...
ConnorWinfield振蕩器,CWX813-012.288M,CMOS時鐘振蕩器,CWX813-001.8432M,導航儀6G晶振，美國進口晶振，ConnorWinfield康納溫菲爾德晶振，CWX8xx系列編碼為：CWX813-012.288M，頻率為：12.288MHz，是一款小體積晶振尺寸7.0x5.0mm四腳貼片晶振，固定頻率晶體控制振蕩器(XO)。為使用而設計在要求嚴格頻率的應用中穩定性和低抖動，表面貼裝CMOS時鐘晶體振蕩器系列，封裝設計用于高密度安裝，是質量的最佳選擇生產。3.3V工作電壓，CMOS輸出邏輯，有源晶振，可用的頻率穩定性: 低抖動< 1pS RMS 三態使能/禁用 膠帶和卷軸包裝 +/-25ppm或+/-50ppm，工作溫度范圍:-20℃至+70℃。被廣泛用于通訊設備晶振，無線網絡晶振，北斗導航晶振，藍牙模塊晶振，GPS定位系統，導航儀，醫療設備，數碼電子，物聯網等應用。
ConnorWinfield振蕩器,CWX813-012.288M,CMOS時鐘振蕩器,CWX813-001.8432M,導航儀6G晶振，參數表
| 型號 | CWX813 |
| 頻率 | 12.288 MHz |
| 電源電壓 | 3.3V，5.0V |
| 輸入電壓 | Vcc+0.5 |
| 輸出 | CMOS |
| 工作溫度 | -20 °C ~ +70 °C |
| 保存溫度 | -55 °C ~ +125 °C |

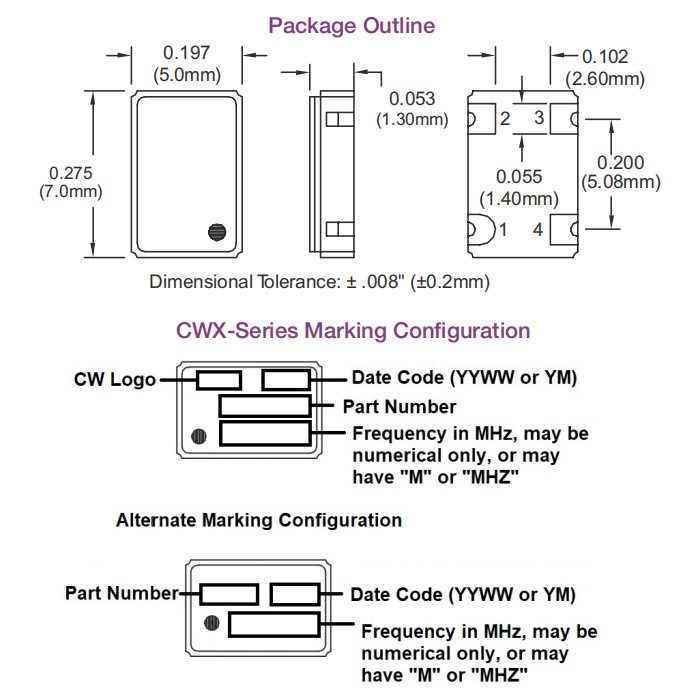

ConnorWinfield振蕩器,CWX813-012.288M,CMOS時鐘振蕩器,CWX813-001.8432M,導航儀6G晶振，尺寸圖
| 石英振蕩器 | 品牌 | 型號 | 頻率 | 工作溫度 | 包裝/封裝 |
| CWX813-024.0M | ConnorWinfield晶振 | CWX813 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-012.0M | ConnorWinfield晶振 | CWX813 | 12MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-018.432M | ConnorWinfield晶振 | CWX813 | 18.432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-001.8432M | ConnorWinfield晶振 | CWX813 | 1.8432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-007.3728M | ConnorWinfield晶振 | CWX813 | 7.3728MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-010.0M | ConnorWinfield晶振 | CWX813 | 10MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-025.0M | ConnorWinfield晶振 | CWX813 | 25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-027.0M | ConnorWinfield晶振 | CWX813 | 27MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-033.0M | ConnorWinfield晶振 | CWX813 | 33MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-040.0M | ConnorWinfield晶振 | CWX813 | 40MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-060.0M | ConnorWinfield晶振 | CWX813 | 60MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-004.0M | ConnorWinfield晶振 | CWX813 | 4MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-016.0M | ConnorWinfield晶振 | CWX813 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-080.0M | ConnorWinfield晶振 | CWX813 | 80MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-064.0M | ConnorWinfield晶振 | CWX813 | 64MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-100.0M | ConnorWinfield晶振 | CWX813 | 100MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-044.736M | ConnorWinfield晶振 | CWX813 | 44.736MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-012.288M | ConnorWinfield晶振 | CWX813 | 12.288MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-019.44M | ConnorWinfield晶振 | CWX813 | 19.44MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-024.576M | ConnorWinfield晶振 | CWX813 | 24.576MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-030.0M | ConnorWinfield晶振 | CWX813 | 30MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-020.0M | ConnorWinfield晶振 | CWX813 | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-020.48M | ConnorWinfield晶振 | CWX813 | 20.48MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-049.152M | ConnorWinfield晶振 | CWX813 | 49.152MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-050.0M | ConnorWinfield晶振 | CWX813 | 50MHz | -20°C ~ 70°C | 貼片晶振 |
| CWX813-029.4912M | ConnorWinfield晶振 | CWX813 | 29.4912MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-066.6666M | ConnorWinfield晶振 | CWX813 | 66.6666MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-001.544M | ConnorWinfield晶振 | CWX813 | 1.544MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-016.384M | ConnorWinfield晶振 | CWX813 | 16.384MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-072.0M | ConnorWinfield晶振 | CWX813 | 72MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-014.31818M | ConnorWinfield晶振 | CWX813 | 14.31818MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-015.36M | ConnorWinfield晶振 | CWX813 | 15.36MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-045.0M | ConnorWinfield晶振 | CWX813 | 45MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-003.6864M | ConnorWinfield晶振 | CWX813 | 3.6864MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-008.0M | ConnorWinfield晶振 | CWX813 | 8MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-032.0M | ConnorWinfield晶振 | CWX813 | 32MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-032.768M | ConnorWinfield晶振 | CWX813 | 32.768MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX813-033.333M | ConnorWinfield晶振 | CWX813 | 33.333MHz | -20°C ~ 70°C | 4-SMD, No Lead |
