石英晶體振蕩器
- 編號：33999129
- 頻率：16MHZ
- 尺寸：5.0*3.2mm

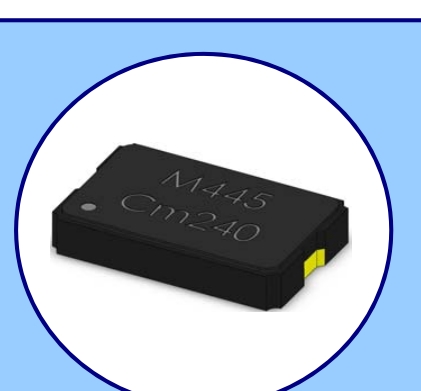

445C33S16M00000 視聽設備 5032mm 16MHZ CTS445 ±30ppm
445C33S16M00000視聽設備5032mm16MHZCTS44530ppm,尺寸為5032mm,頻率為16MHZ,頻率穩定性為30ppm，工作溫度為-20C~+70C，美國CTS晶振，進口晶振，無源貼片晶振，陶瓷晶振，SMD晶振，小體積晶振，無源諧振器，高性能晶振...
TXC,NDK,希華.jpg)
445C33S16M00000 視聽設備 5032mm 16MHZ CTS445 ±30ppm,尺寸為5032mm,頻率為16MHZ,頻率穩定性為±30ppm，工作溫度為-20°C~+70°C，美國CTS晶振，進口晶振，無源貼片晶振，陶瓷晶振，SMD晶振，小體積晶振，無源諧振器，高性能晶振，低損耗晶振，筆記本電腦晶振，汽車電子專用晶振，藍牙晶振，視聽設備晶振，外圍設備晶振，445C33L20M00000晶振，445C33K24M00000無源晶振。445型陶瓷諧振器是一種低成本設備，廣泛用于商業應用，包括筆記本電腦、電腦外圍設備、視聽設備、藍牙和USB接口、pda和汽車電子產品。445C33S16M00000 視聽設備 5032mm 16MHZ CTS445 ±30ppm.
格發TXC,NDK,希華.jpg)
445C33S16M00000 視聽設備 5032mm 16MHZ CTS445 ±30ppm 參數表
| PARAMETER | VALUE | ||
| Frequency Range | 8MHz to 50MHz | ||
| Operating Mode | Fundamental | ||
| Crystal Cut | AT-Cut | ||
| Frequency Tolerance @ +25°C | ±20ppm, ±30ppm | ||
|
Frequency Stability Tolerance [Operating Temperature Range, Referenced to 25°C Reading] |
±10ppm, ±15ppm, ±20ppm, ±30ppm, ±50ppm |
||
| Operating Temperature Ranges | 0°C to +50°C -20°C to +70°C |
-10°C to +60°C -40°C to +85°C |
|
|
Equivalent Series Resistance [Maximum] |
8MHz - <12MHz | 100 Ohms | |
| 12MHz - <16MHz | 50 Ohms | ||
| 16MHz - <30MHz | 40 Ohms | ||
| 30MHz - <50MHz | 30 Ohms | ||
| Load Capacitance or Resonance Mode | See Ordering Information | ||
| Shunt Capacitance [C0] | 5.0pF Typical, 7.0pF Maximum | ||
| Drive Level | 10µW Min., 100µW Typ., 300µW Max. | ||
| Aging @ +25°C | ±3ppm/yr Typical | ||
| Storage Temperature Range | -40°C to +85°C | ||
445C33S16M00000晶振 特點

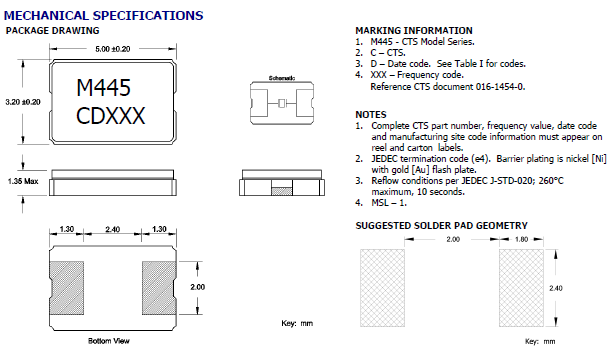

標準5.0mmx3.2mm玻璃密封包裝
基本晶體設計
頻率范圍8-50MHz
·頻率公差，±20ppm標準[可提供其他公差]
頻率穩定性，±30ppm標準[其他穩定性可用]
·工作溫度-40℃~+85℃
膠帶和卷軸包裝標準，EIA-481
| 原廠編碼 | 廠家 | 型號 | 系列 | 頻率 |
| 445C35A12M00000 | CTS晶振 | 445 | MHz Crystal | 12MHz |
| 445C25D25M00000 | CTS晶振 | 445 | MHz Crystal | 25MHz |
| 445C25D24M00000 | CTS晶振 | 445 | MHz Crystal | 24MHz |
| 445C25D12M00000 | CTS晶振 | 445 | MHz Crystal | 12MHz |
| 445C25D20M00000 | CTS晶振 | 445 | MHz Crystal | 20MHz |
| 445C25D27M00000 | 西迪斯CTS晶振 | 445 | MHz Crystal | 27MHz |
| 445I23D12M00000 | CTS晶振 | 445 | MHz Crystal | 12MHz |
| 445I23D25M00000 | CTS晶振 | 445 | MHz Crystal | 25MHz |
| 445I23D24M00000 | CTS晶振 | 445 | MHz Crystal | 24MHz |
| 445I23D30M00000 | CTS晶振 | 445 | MHz Crystal | 30MHz |
| 445C33A20M00000 | CTS晶振 | 445 | MHz Crystal | 20MHz |
| 445C33D25M00000 | CTS晶振 | 445 | MHz Crystal | 25MHz |
| 445C35K16M00000 | CTS晶振 | 445 | MHz Crystal | 16MHz |
| 445I23D27M00000 | CTS晶振 | 445 | MHz Crystal | 27MHz |
| 445I23D14M31818 | CTS晶振 | 445 | MHz Crystal | 14.31818MHz |
| 445I23D20M00000 | CTS晶振 | 445 | MHz Crystal | 20MHz |
| 445I23E25M00000 | CTS晶振 | 445 | MHz Crystal | 25MHz |
| 445C33D24M00000 | CTS晶振 | 445 | MHz Crystal | 24MHz |
| 445C33S12M00000 | CTS晶振 | 445 | MHz Crystal | 12MHz |
| 445C33A12M00000 | CTS晶振 | 445 | MHz Crystal | 12MHz |
| 445C33D12M00000 | CTS晶振 | 445 | MHz Crystal | 12MHz |
| 445C33E12M00000 | CTS晶振 | 445 | MHz Crystal | 12MHz |
| 445C33K12M00000 | CTS晶振 | 445 | MHz Crystal | 12MHz |
| 445C33L12M00000 | CTS晶振 | 445 | MHz Crystal | 12MHz |
| 445C33C12M00000 | CTS晶振 | 445 | MHz Crystal | 12MHz |
| 445C33S13M00000 | CTS晶振 | 445 | MHz Crystal | 13MHz |
| 445C33A13M00000 | CTS晶振 | 445 | MHz Crystal | 13MHz |
| 445C33D13M00000 | CTS晶振 | 445 | MHz Crystal | 13MHz |
| 445C33E13M00000 | CTS晶振 | 445 | MHz Crystal | 13MHz |
| 445C33K13M00000 | CTS晶振 | 445 | MHz Crystal | 13MHz |
| 445C33L13M00000 | CTS晶振 | 445 | MHz Crystal | 13MHz |
| 445C33C13M00000 | CTS晶振 | 445 | MHz Crystal | 13MHz |
| 445C33S14M31818 | CTS晶振 | 445 | MHz Crystal | 14.31818MHz |
| 445C33A14M31818 | CTS晶振 | 445 | MHz Crystal | 14.31818MHz |
| 445C33D14M31818 | CTS晶振 | 445 | MHz Crystal | 14.31818MHz |
| 445C33E14M31818 | CTS晶振 | 445 | MHz Crystal | 14.31818MHz |
| 445C33K14M31818 | CTS晶振 | 445 | MHz Crystal | 14.31818MHz |
| 445C33L14M31818 | CTS晶振 | 445 | MHz Crystal | 14.31818MHz |
| 445C33C14M31818 | CTS晶振 | 445 | MHz Crystal | 14.31818MHz |
| 445C33S16M00000 | CTS晶振 | 445 | MHz Crystal | 16MHz |
| 445C33A16M00000 | CTS晶振 | 445 | MHz Crystal | 16MHz |
| 445C33D16M00000 | CTS晶振 | 445 | MHz Crystal | 16MHz |
| 445C33E16M00000 | CTS晶振 | 445 | MHz Crystal | 16MHz |
| 445C33K16M00000 | CTS晶振 | 445 | MHz Crystal | 16MHz |
| 445C33L16M00000 | CTS晶振 | 445 | MHz Crystal | 16MHz |
| 445C33C16M00000 | CTS晶振 | 445 | MHz Crystal | 16MHz |
| 445C33S20M00000 | CTS晶振 | 445 | MHz Crystal | 20MHz |
| 445C33D20M00000 | CTS晶振 | 445 | MHz Crystal | 20MHz |
| 445C33E20M00000 | CTS晶振 | 445 | MHz Crystal | 20MHz |
| 445C33K20M00000 | CTS晶振 | 445 | MHz Crystal | 20MHz |
| 445C33L20M00000 | CTS晶振 | 445 | MHz Crystal | 20MHz |
| 445C33C20M00000 | CTS晶振 | 445 | MHz Crystal | 20MHz |
| 445C33S24M00000 | CTS晶振 | 445 | MHz Crystal | 24MHz |
| 445C33A24M00000 | CTS晶振 | 445 | MHz Crystal | 24MHz |
| 445C33E24M00000 | CTS晶振 | 445 | MHz Crystal | 24MHz |
| 445C33K24M00000 | CTS晶振 | 445 | MHz Crystal | 24MHz |
| 445C33L24M00000 | CTS晶振 | 445 | MHz Crystal | 24MHz |
| 445C33C24M00000 | CTS晶振 | 445 | MHz Crystal | 24MHz |
| 445C33S24M57600 | CTS晶振 | 445 | MHz Crystal | 24.576MHz |
| 445C33A24M57600 | CTS晶振 | 445 | MHz Crystal | 24.576MHz |
| 445C33D24M57600 | CTS晶振 | 445 | MHz Crystal | 24.576MHz |
| 445C33E24M57600 | CTS晶振 | 445 | MHz Crystal | 24.576MHz |
| 445C33K24M57600 | CTS晶振 | 445 | MHz Crystal | 24.576MHz |
| 445C33L24M57600 | CTS晶振 | 445 | MHz Crystal | 24.576MHz |
| 445C33C24M57600 | CTS晶振 | 445 | MHz Crystal | 24.576MHz |
| 445C33S25M00000 | CTS貼片無源晶振 | 445 | MHz Crystal | 25MHz |
| 445C33A25M00000 | CTS晶振 | 445 | MHz Crystal | 25MHz |
| 445C33E25M00000 | CTS晶振 | 445 | MHz Crystal | 25MHz |
| 445C33K25M00000 | CTS晶振 | 445 | MHz Crystal | 25MHz |
| 445C33L25M00000 | CTS晶振 | 445 | MHz Crystal | 25MHz |
| 445C33S27M00000 | CTS晶振 | 445 | MHz Crystal | 27MHz |
| 445C33A27M00000 | CTS晶振 | 445 | MHz Crystal | 27MHz |
| 445C33D27M00000 | CTS晶振 | 445 | MHz Crystal | 27MHz |
