- 編號：19345747
- 頻率：32.768KHz
- 尺寸：8.0x3.8x2.5mm
ABS25-32.768KHZ-4-T,8038mm,Abracon無源晶振
ABS25-32.768KHZ-4-T,8038mm,Abracon無源晶振,ABS25,測量設備晶振，艾博康晶振，Abracon晶振，美國進口晶振，型號：ABS25系列晶振，產品編碼為：ABS25-32.768KHZ-4-T，頻率：32.768KHz，負載：12.5pF，精度：30ppm，工...
.jpg)
TXC,NDK,希華.jpg)
ABS25-32.768KHZ-4-T,8038mm,Abracon無源晶振,ABS25,測量設備晶振，艾博康晶振，Abracon晶振，美國進口晶振，型號：ABS25系列晶振，產品編碼為：ABS25-32.768KHZ-4-T，頻率：32.768KHz，負載：12.5pF，精度：±30ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：8.0x3.8x2.5mm，四腳貼片晶振，石英晶振，陶瓷晶振，音叉晶振，無源晶振，8038晶振，石英晶體諧振器，具有超小型晶振，輕薄型晶振，高品質晶振，耐熱及耐環境特點。應用程序：通信設備晶振，測量設備晶振，計算機晶振，時鐘晶振，商業和工業應用。
ABS25-32.768KHZ-4-T,8038mm,Abracon無源晶振,ABS25,測量設備晶振，產品特點：
•陶瓷SMD陶瓷諧振器
•高度為2.5mm，非常適合高密度電路板
•適用于符合RoHS的回流焊
•工業應用的擴展溫度-40°C至+85°C
格發TXC,NDK,希華.jpg)
.jpg)
ABS25-32.768KHZ-4-T,8038mm,Abracon無源晶振,ABS25,測量設備晶振,參數表
| Parameters | Minimum | Typical | Maximum | Units | Notes | ||||||||||
| Nominal Frequency | ----- | 32.768 | ----- | kHz | |||||||||||
| Frequency Range | 30 | ----- | 100 | kHz | |||||||||||
| Operating Temperature | -40 | ----- | +85 | ºC | |||||||||||
| Turnover Temperature | +20 | +25 | +30 | ºC | |||||||||||
| Storage Temperature | -55 | ----- | +125 | ºC | |||||||||||
| Frequency Tolerance @+25°C | -20 | ----- | +20 | ppm | 32.768kHz | ||||||||||
| -30 | ----- | +30 |
Other frequencies See options |
||||||||||||
| Capacitance Ratio (C0/C1) | ----- | 450 | ----- | 32.768kHz | |||||||||||
| ----- | 425 to 800 | ----- | Other frequencies | ||||||||||||
| Frequency Coefficient (ß) | -0.040 | -0.034 | -0.028 | ppm/T2 | |||||||||||
| Equivalent series resistance (R1) | ----- | ----- | 50 | kΩ | |||||||||||
| Shunt capacitance (C0) | ----- | 1.35 | ----- | pF | 32.768kHz | ||||||||||
| 0.8 to 1.7 | pF | Other frequencies | |||||||||||||
| Load capacitance (CL) | 12.5 | pF | See options | ||||||||||||
| Drive Level | ----- | ----- | 1 | µW | |||||||||||
| Aging | -3 | ----- | +3 | ppm |
@25°C±3°C First year |
||||||||||
| -5 | ----- | +5 | |||||||||||||
| Insulation Resistance | 500 | ----- | ----- | MΩ | @ 100Vdc ± 15V | ||||||||||
TXC,NDK,希華.jpg)

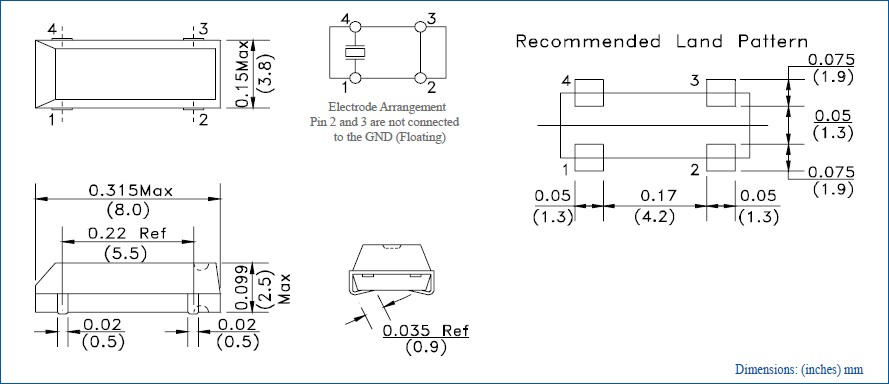

ABS25-32.768KHZ-4-T,8038mm,Abracon無源晶振,ABS25,測量設備晶振,尺寸圖
格.png)
| 原廠編碼 | 進口晶振 | 型號 | 頻率 | 包裝/封裝 |
| ABS07-32.768KHZ-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07-120-32.768KHZ-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-7-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-9-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-7-1-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-107-32.768KHZ-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-1-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-9-1-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-9-1-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-6-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-7-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-9-T | 貼片晶振 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-1-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-9-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-1-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-7-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS07-LR-32.768KHZ-6-1-T | Abracon艾博康 | ABS07-LR | 32.768kHz | 2-SMD, No Lead |
| ABS07L-32.768KHZ-T | Abracon艾博康 | ABS07L | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-1-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-9-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS06L-32.768KHZ-T | Abracon艾博康 | ABS06L | 32.768kHz | 2-SMD, No Lead |
| ABS07-LR-32.768KHZ-6-T | Abracon艾博康 | ABS07-LR | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-4-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS05-32.768KHZ-T | Abracon艾博康 | ABS05 | 32.768kHz | 2-SMD, No Lead |
| ABS05-32.768KHZ-9-T | Abracon艾博康 | ABS05 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-4-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-4-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-6-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-D-1-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-D-2-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-J-2-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-J-1-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-K-2-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-K-1-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
